17AM-D+PTC manual reset thermal protector thermal overload protector

17AM-D+PTC thermal protector: Normal closed, cut off upon temperature rises.
Snap action, self-hold manual reset .
Contact rating: 125VAC 16A/ 20VDC 20A/ 250VAC 8A
Open Temperature: 50C to 180C

Application:17AM-D+PTC thermal protector: It’s widely used and protect electric motor; vacuum cleaner and general electric appliance.

Quantity:
  • 17AM-D+PTC Thermal Protector
  • HC

17AM-D+PTC manual reset  thermal switch,bimetal thermostat,bimetal thermal switch,motor thermal protector,motor protector,  bimetal switch,lighting thermal protector,thermal protector for fan motor,bimetal thermal protector,thermal overload protector,thermal overload protector switch, overload switch, thermal cutoff switch, thermal cutout switch, motor protection thermal switch, thermal cutoff, thermal cutoff fuse, thermal cutoff switch, thermal cutout switch, bimetal temperature switch, bimetal thermostat switch

Snap action thermal protector , automatic reset type with UL,VDE, CB, CCC , Rohs compliant



Work principle:

17AM-D+PTC thermal protector: snap action, normal closed, cut off at temperature rises. With a PTC element, the thermal protector will not reset unless you cut the power off and after the thermal protector cool down.



Application:

17AM-D+PTC thermal protector: It’s widely used in electric motor; vacuum cleaner and general electric appliance.



Main features:

 Double protection of over current and over heat

Snap action, normal closed, auto reset

Contact rating: 125VAC 16A/ 20VDC 20A/ 250VAC 8A /250VAC 9A
Thermal switch dimension:23.5X11.5X6.5mm

Open Temperature: 50C to 180C,  in 5C increasement

Tolerance for open temperature: +/-5C

Cable:Stardard:AWG18, 65mm long, special requests accepted

Terminals on same side or on opposite sides.

Suitable for most varnishing processes

Approval: UL,VDE, CB, CCC, Rohs compliant



Advantage:

Advance equipments, automatic production line, large production capacity and high quality guaranteed.


Open Temp Vs Close temp of model 17AM+PTC
Model Open temp.(℃) Reset temp.(℃) Model Open temp.(℃) Reset temp.(℃)
17AM+PTC 50 50±5 Selfhold 17AM+PTC 110 110±5 Selfhold
17AM+PTC 55 55±5 Selfhold 17AM+PTC 115 115±5 Selfhold
17AM+PTC 60 60±5 Selfhold 17AM+PTC 120 120±5 Selfhold
17AM+PTC 65 65±5 Selfhold 17AM+PTC 125 125±5 Selfhold
17AM+PTC 70 70±5 Selfhold 17AM+PTC 130 130±5 Selfhold
17AM+PTC 75 75±5 Selfhold 17AM+PTC 135 135±5 Selfhold
17AM+PTC 80 80±5 Selfhold 17AM+PTC 140 140±5 Selfhold
17AM+PTC 85 85±5 Selfhold 17AM+PTC 145 145±5 Selfhold
17AM+PTC 90 90±5 Selfhold 17AM+PTC 150 150±5 Selfhold
17AM+PTC 95 95±5 Selfhold 17AM+PTC 155 155±5 Selfhold
17AM+PTC 100 100±5 Selfhold 17AM+PTC 160 160±5 Selfhold
17AM+PTC 105 105±5 Selfhold 17AM+PTC 165 165±5 Selfhold

Remark: thermal protector can only reset after the power cut off



Dimension:



17AM-D+PTC02 drawing




Tripping Current Vs Tripping Time at the Ambient Temperature of 25℃

17Am graph of current vs tripping time

Ultimate Tripping Current Vs Ambient Temperature ( for reference only)

 current vs temperature curve_(1)

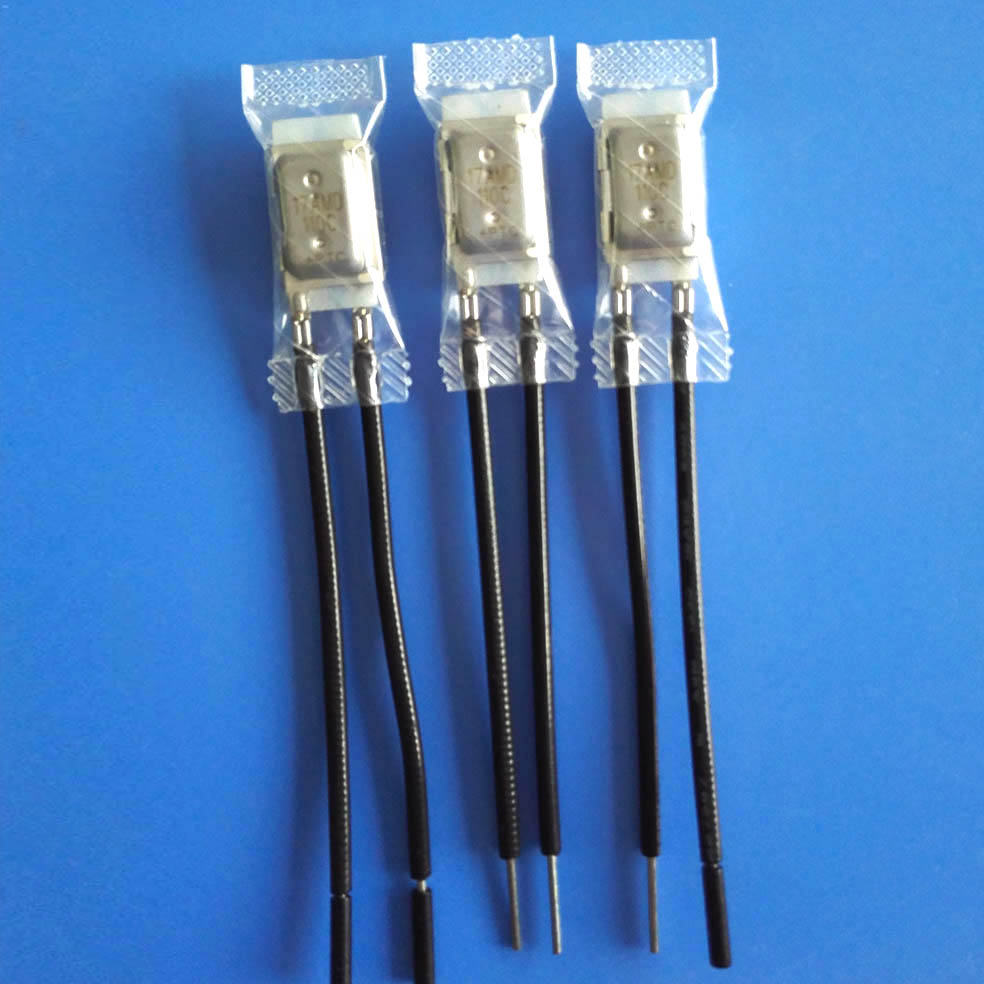

Product Picture

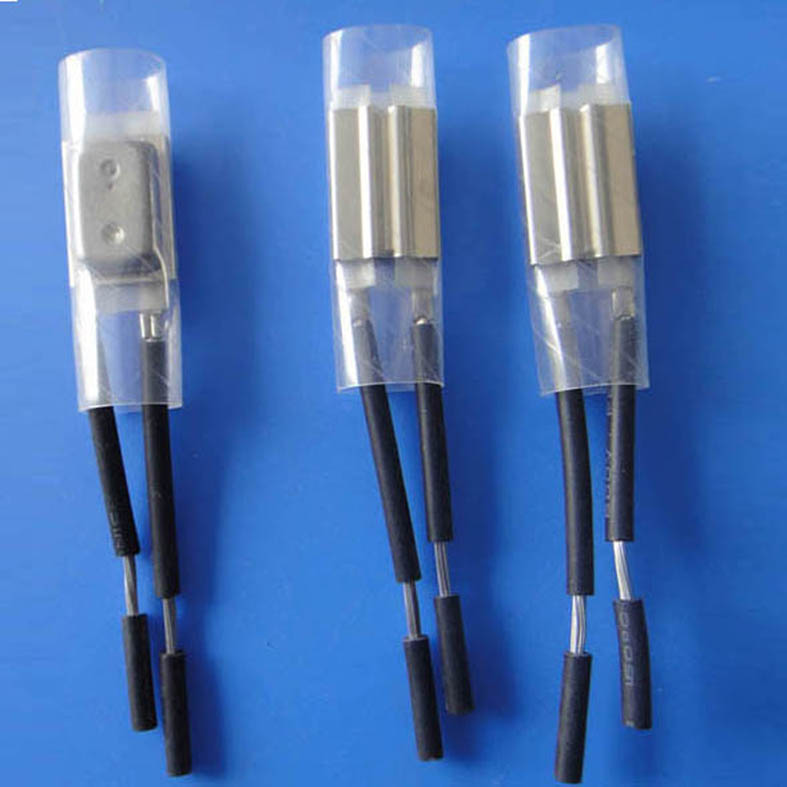

 17AMD+PTC03

 17AMD+PTC05








Other models for your choices:



HC thermal protector02



Production line

 production05





Packaging & shipping

 package


 pack01
