BW-B2D thermal protector thermal overload protector

B2D thermal protector: plastic case, snap action, automatic reset.
Snap action, normal closed, auto reset
Normal closed type: cutoff at temperature rises. Normal open type: contacts closed (ON) at temperature rises
Contact rating: 8A/125VAC; 5A/250VAC; 8A/24VDC
Thermal switch dimension: 15X7.3X3.9mm
Action Temperature: 50C to 155C

Application: B2D thermal protector are widely used in They are also used motor, transformer, lighting appliance, heater, fluorescent ballast, IC etc.
  • B2D Thermal Protector

  • HC

Availability:
Quantity:

BW-B2D thermal switch,bimetal thermostat, thermal protector,motor thermal protector,motor protector, resettable thermal fuse, bimetal switch,lighting thermal protector,thermal protector for fan motor,bimetal thermal protector,thermal overload protector,thermal overload protector switch, overload switch, thermal cutoff switch, thermal cutout switch, motor protection thermal switch, thermal cutoff, thermal cutoff fuse, thermal cutoff switch, thermal cutout switch, bimetal temperature switch, bimetal thermostat switch

Snap action thermal protector , automatic reset type with UL,VDE, CB, CCC , Rohs compliant



Work principle:

BW-B2D thermal protector is a temperature automatic response devide and is connected in series to the winding of motor.

 Normal closed type:  cutoff at temperature rises.

Normal open type: contacts closed (ON) at temperature rises


Application:

B2D series thermal protectors are devices for protecting against overload and over temperature. They are usually used for AC 220v /50Hz one phase motors to protect motor from over temperature caused by unusual state such as overload, blocked up. They are also used for protecting against over temperature & temperature control in lighting appliance, heater, fluorescent ballast, IC etc.

Main features:

Snap action, normal closed, auto reset

Contact rating: 8A/125VAC; 5A/250VAC; 8A/24VDC
Thermal switch dimension: 15X7.3X3.9mm

Open Temperature: 50C to 155C,  in 5C increasement

Tolerance for open temperature: +/-5C

Cable:Stardard:AWG20 silicon cable or AWG#22 UL3326 PE cable, 70mm long, special requests accepted
Approval: UL,VDE, CQC,CB, Rohs compliant



Advantage:

Good quality, good price, prompt delivery guaranteed.


Cutoff temperature table:(reset temperature for reference)

Model Open temperture Reset temperture Model Open temperture Reset temperture
B2D-50℃ 50±5℃ 35±6℃ B2D-105℃ 105±5℃ 70±15℃
B2D-55℃ 55±5℃ 35±7℃ B2D-110℃ 110±5℃ 75±15℃
B2D-60℃ 60±5℃ 40±10℃ B2D-115℃ 115±5℃ 75±15℃
B2D-65℃ 65±5℃ 45±10℃ B2D-120℃ 120±5℃ 80±15℃
B2D-70℃ 70±5℃ 45±10℃ B2D-125℃ 125±5℃ 85±15℃
B2D-75℃ 75±5℃ 50±15℃ B2D-130℃ 130±5℃ 85±15℃
B2D-80℃ 80±5℃ 55±15℃ B2D-135℃ 135±5℃ 90±15℃
B2D-85℃ 85±5℃ 55±15℃ B2D-140℃ 140±5℃ 95±15℃
B2D-90℃ 90±5℃ 60±15℃ B2D-145℃ 145±5℃ 95±15℃
B2D-95℃ 95±5℃ 65±15℃ B2D-150℃ 150±5℃ 100±15℃
B2D-100℃ 100±5℃ 65±15℃ B2D-155℃ 155±5℃ 105±15℃


Dimension:

 with leadwire and with insulation sleeve, the cable and length can be made according to customer's request:

15X7.3X3.9mm with 70mm cable, special requests for the cable acceptable



Ultimate Tripping Current Vs Ambient Temperature ( for reference only)

A-C chart





Product Picture




18AM thermal switch

B2D-04 bimetal thermal switch

 B2D-01 bimetal thermal switch


thermal protector (plastic case)

B2D-50



Other models for your reference



HC thermal protector02



Production line

 production line

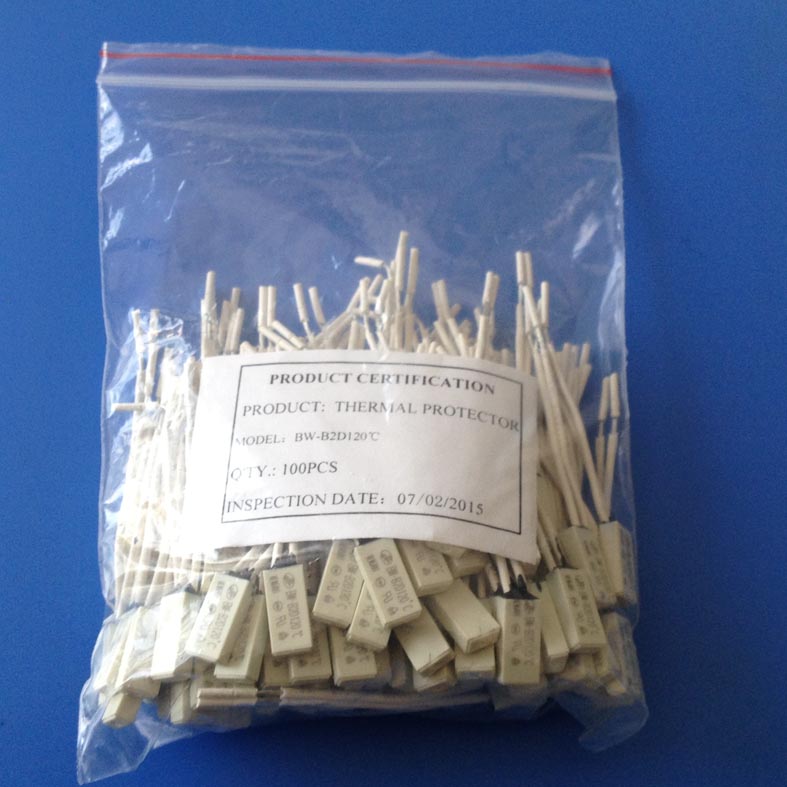

Packaging & shipping



pack01

package






Storage Condition:

During the transport and storage, the packages can not be exposed to snows or rains, and should avoid strong force outside.  It shouId be stored in a dry and ventilative warehouse.



Customers' special requests accepted. Pls contact us for more.
