GE type
HC
| Quantity: | |
|---|---|
temperature controller GE style thermostat wdf thermostat for refrigerator capillary thermostat mechanical thermostat refrigeration thermostat deep freezer thermostat freezer thermostat defrost thermostat thermostat for air conditioner thermostat for drinking water machine temperature regulator
Application:
refrigerator ,freezer,ice machines,cold counter, cooler,water cooler, air conditioner and defrost refrigerator.
Feature:
Contact form: SPST, SPDT
Voltage: 125VAC 250VAC
Contact resistance: <50mΩ
Insulation resistance: >DC500V 100MΩ
Capillary: can be made according to customer's request
Some models for your reference
| Thermostat | ||||||||||||
| Model | Operating Temperature °C | Additional Functions | Capillary length (mm) | Bulb (mm) | Contact style | Rated voltage (VAC) | Rated current (A) | |||||
| Cold | Normal | Warm | ||||||||||
| On | Off | On | Off | On | Off | |||||||
| 3ART17B6 | 22 | 19 | --- | --- | 34 | 32 | --- | 340 | --- | S.P.S.T. | 120/250 | 20 |
| 3ART17F44 | 19.0 | 16.0 | --- | --- | 31.0 | --- | --- | 380 | --- | S.P.S.T. | 120/250 | 20 |
| 3ART17G60 | 17 | 14 | --- | --- | 33 | 31 | --- | 340 | --- | S.P.S.T. | 120/250 | 20 |
| 3ART17G84 | 19.5 | 16.5 | --- | --- | 32 | 29.5 | --- | 150 | 6.3-165 | S.P.S.T. | 120/250 | 20 |
| 3ART17P40 | / | / | 12.5 | 1.5 | / | / | --- | 815 | --- | S.P.S.T. | 120/250 | 20 |
| 3ART17RE16 | 19 | 16 | --- | --- | 32.5 | 30.5 | --- | 325 | 6-165 | S.P.S.T. | 120/250 | 20 |
| 3ART17RL45 | 19 | 16 | --- | --- | 34 | 32 | --- | 240 | 6-165 | S.P.S.T. | 120/250 | 20 |
| 3ART17RS28 | 20 | 17 | --- | --- | 33 | 31 | --- | 285 | 6-165 | S.P.S.T. | 120/250 | 20 |
| 3ART17S5 | 20 | 17 | --- | --- | 28 | 26 | --- | 500 | --- | S.P.S.T. | 120/250 | 20 |
| 3ART17S7 | 19 | 16 | --- | --- | 28 | 25 | --- | 275 | 6-165 | S.P.S.T. | 120/250 | 20 |
| 3ART17S8 | 20 | 17 | --- | --- | 28 | 26 | --- | 500 | --- | S.P.S.T. | 120/250 | 20 |
| 3ART17S9 | 18 | 15 | --- | --- | 27 | 25 | --- | 275 | 6-165 | S.P.S.T. | 120/250 | 20 |
| 3ART17VF4 | 4.2 | -7.0 | --- | --- | 12.0 | 3.2 | --- | 800 | --- | S.P.S.T. | 120/250 | 20 |
| 3ART24A144 | 19 | 16 | --- | --- | 30 | 28 | Force On | 460 | --- | S.P.D.T. | 120/250 | 25 |
| 3ART24A151 | 19 | 16 | --- | --- | 32 | 30 | Force On | 260 | 6-165 | S.P.D.T. | 120/250 | 25 |
| 3ART24A165 | 19 | 16 | --- | --- | 32 | 30 | --- | 260 | 6-165 | S.P.D.T. | 120/250 | 25 |
| 3ART24A175 | 19.5 | 16.5 | --- | --- | 32 | 30 | --- | 250 | 6.3-165 | S.P.D.T. | 120/250 | 25 |
| 3ART24AL8 | 18.5 | 15.5 | --- | --- | 33.5 | --- | --- | 875 | 6.3-165 | S.P.D.T. | 120/250 | 25 |
| 3ART24F15 | 18 | 15 | --- | --- | 36 | 34 | --- | 340 | --- | S.P.D.T. | 120/250 | 25 |
| 3ART24G28 | 18 | 15 | --- | --- | 28 | 25 | --- | 340 | --- | S.P.D.T. | 120/250 | 25 |
| 3ART24G61 | 19.5 | 16.5 | --- | --- | 32 | 30 | --- | 185 | 6.3-165 | S.P.D.T. | 120/250 | 20 |
| 3ART24KT7 | --- | 11 | 34 | --- | 910 | S.P.D.T | 120/250 | 25 | ||||
| 3ART28KT16 | --- | 11 | 34 | --- | 470 | S.P.S.T | 120/250 | 30 | ||||
| 3ART56VAA4 | 5.0 | -10.0 | --- | --- | 5.0 | -4.0 | Force Off | 1150 | --- | S.P.S.T | 120/250 | 8 |
| 3ART5AE16 | -20 | -26 | --- | --- | -10.5 | -14.5 | Force Off | 330 | S.P.S.T. | |||
| 3ART5AE17 | -10.5 | -24.5 | --- | --- | -4.5 | -16 | Force Off | 500 | S.P.S.T. | |||
| 3ART5C101 | -23 | -32 | -15 | -21.5 | Force Off | 1015 | S.P.S.T. | 120/250 | 20 | |||
| 3ART5C184 | -1 | -4.5 | 6 | 3.5 | Force Off | 380 | S.P.S.T. | 120/250 | 5 | |||
| 3ART5C197 | 0.2 | -9.5 | --- | --- | 6 | 1.5 | Force Off | 770 | --- | S.P.S.T. | 120/250 | 6 |
| 3ART5C212 | 2.1 | -9.3 | --- | --- | 6.6 | -2.8 | Force Off | 720 | GE-019 | S.P.S.T. | 120/250 | 10 |
| 3ART5C225 | -3.5 | -13.5 | 4 | -3.5 | Force Off | 650 | S.P.S.T. | |||||
| 3ART5C231 | 0.0 | -10.0 | --- | --- | 5.0 | (-3.5) | Force Off | 600 | S.P.S.T. | 120/250 | 6 | |
| 3ART5KT41 | --- | -27 | 3.5 | --- | Force Off | 1100 | S.P.S.T. | |||||
| 3ART5KT49 | --- | -34.5 | -5.5 | --- | Force Off | 2000 | S.P.S.T. | |||||
| 3ART5LP5 | -10.5 | -24.5 | --- | --- | -4.5 | -16 | Force Off | 690 | --- | S.P.S.T. | 120/250 | 10 |
| 3ART5RWH6 | 20 | 17 | 33 | 31 | 420 | S.P.S.T. | ||||||
| 3ART5VAA112 | -21.0 | -33.0 | -13.0 | -22.0 | Force Off | 670 | S.P.S.T. | 120/240 | 6 | |||
| 3ART5VAA125 | -23 | -32 | -15 | -21.5 | Force Off | 1015 | S.P.S.T. | 120/250 | 10 | |||
| 3ART5VAA14 | 0.8 | -8.5 | --- | --- | 6 | -2 | Force Off | 330 | --- | S.P.S.T. | ||
| 3ART5VAA142 | -5 | -14.5 | --- | --- | 4 | -3 | Force Off | 410 | --- | S.P.S.T. | 120/250 | 10 |
| 3ART5VAA158 | 1.5 | -3 | --- | --- | 8.5 | 5 | Force Off | 420 | --- | S.P.S.T. | ||
| 3ART5VAA54 | -22.0 | -34.0 | --- | --- | -10.0 | -17.0 | Force Off | 490 | --- | S.P.S.T. | 120/250 | 6 |
| 3ART5VC136 | -3 | -12 | --- | --- | 5 | -1 | Force Off | 410 | --- | S.P.S.T. | ||
| 3ART5VC154 | -1.5 | -15 | --- | --- | 6.5 | -3.5 | Force Off | 420 | --- | S.P.S.T. | 120/250 | 10 |
| 3ART5VC158 | 2 | -2.7 | --- | --- | 8.5 | 4.7 | Force Off | 850 | --- | S.P.S.T. | 120/250 | 10 |
| 3ART5VC163 | -4 | -12.5 | --- | --- | 4.5 | -2 | Force Off | 500 | --- | S.P.S.T. | 120/250 | 10 |
| 3ART5VC171 | -6 | -16 | 3 | -4 | Force Off | 420 | S.P.S.T. | |||||
| 3ART5VC81 | 1 | -1 | --- | --- | 3.5 | 2 | Force Off | 500 | --- | S.P.S.T. | 120/250 | 5 |
| 3ART5VC96 | -3.5 | -8 | --- | --- | 4 | 0.5 | Force Off | 425 | --- | S.P.S.T. | 120/250 | 10 |
| 3ART5VG10 | -1 | -4 | --- | --- | 5 | 2 | Force Off | 330 | --- | S.P.S.T. | 120/250 | 10 |
| 3ART5VG21 | -3 | -7 | --- | --- | 3 | 0.5 | Force Off | 250 | --- | S.P.S.T. | ||
| 3ART5VG8 | 2 | -2 | --- | --- | 7 | 4.5 | Force Off | 250 | --- | S.P.S.T. | ||
| 3ART5VH35 | -4 | -10 | --- | --- | 3 | -2 | Force Off | 330 | --- | S.P.S.T. | ||
| 3ART5VH39 | -3.5 | -7.5 | --- | --- | 1.5 | -2.5 | Force Off | 330 | --- | S.P.S.T. | ||
| 3ART5VH40 | -3 | -13.5 | --- | --- | 1.5 | -6 | Force Off | 350 | --- | S.P.S.T. | 120/250 | 10 |
| 3ART5VN11 | -4 | -11 | --- | --- | 2 | -3.5 | Force Off | 950 | --- | S.P.S.T. | ||
| 3ART5VN8 | -4 | -11 | --- | --- | 2 | -3.5 | Force Off | 680 | S.P.S.T. | |||
| 3ART5VW14 | -2 | -13.5 | --- | --- | 5 | -3.5 | Force Off | 1000 | --- | S.P.S.T. | 120/250 | 10 |
| 3ART6KT17 | 3.9 | -30.5 | --- | --- | 3.9 | -16 | Force Off | 1300 | S.P.S.T. | |||
| GC405 | 4 | -26 | --- | --- | 4 | -12 | --- | 1500 | --- | S.P.S.T. | 120/250 | 10 |

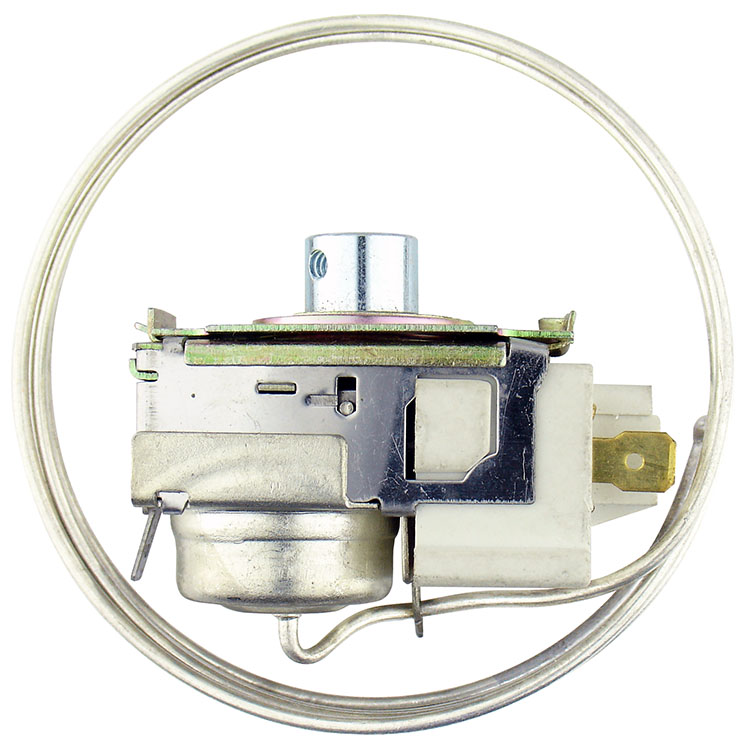

| GC410 | 4 | -4.5 | --- | --- | 4 | -20.5 | --- | 1150 | --- | S.P.S.T. | 120/250 | 10 |
| GC501 | --- | -26.5 | -7 | -13 | 3.3 | --- | Force Off | 1065 | --- | S.P.S.T. | 120/250 | 10 |
| GC505 | -6 | -9 | --- | --- | 9.5 | 7 | Force Off | 610 | --- | S.P.S.T. | 120/250 | 10 |
| GC506 | -7 | -14 | --- | --- | 9 | 2 | Force Off | 610 | --- | S.P.S.T. | 120/250 | 10 |
| GC602 | -27 | -34 | --- | --- | -12 | -18.5 | Force Off | 1980 | --- | S.P.S.T. | 120/250 | 10 |
| GC604 | -27 | -36.5 | --- | --- | -7 | -17 | --- | 914 | S.P.S.T. | |||
| GC607 | -25.5 | -30.5 | --- | --- | -10.5 | -15.5 | Force Off | 787 | --- | S.P.S.T. | 120/250 | 10 |
| GC609 | -23.5 | -32 | --- | --- | -5 | -14 | Force Off | 610 | --- | S.P.S.T. | 120/250 | 10 |
| GC702 | 14.5 | 11 | --- | --- | 34 | 30.5 | --- | 914 | S.P.S.T. | |||
| T3J6180-H09 | -12.5 | -23.0 | --- | --- | 3.5 | -3.0 | Force Off | 730 | --- | S.P.S.T. | 120/250 | 10 |
| RF090047 | 3.0 | -25.0 | 3.0 | -22.0 | 3.5 | -19.0 | Force Off | 690 | --- | S.P.S.T. | 120/250 | 6 |
| RF090048 | -21.5 | -31.5 | -18.5 | -27.5 | -16.5 | -25.0 | Force Off | 700 | --- | S.P.S.T. | 120/250 | 6 |
| WR9X405 | -2 | -6 | --- | --- | 4 | 1 | Force Off | 340 | --- | S.P.S.T. | 120/250 | 10 |
| WR9X545 | -4.0 | -12.0 | --- | --- | 5.0 | -1.0 | Force Off | 475 | --- | S.P.S.T. | 120/250 | 6 |
